介质膜前表面反射镜
技术规格:
材料.............................................................H-K9L优
尺寸公差......................................................±0.2mm
有效孔径........................................................> 85%
光洁度............................................................60-40
面形...................................λ/8 per 25mm @632.8nm
平行度....................................................<3'(S1//S2)
倒角....................................................0.25mm x 45°
镀膜.................S1面镀介质高反膜,R>98%,R=(Rs+Rp)/2
材料.............................................................H-K9L优
尺寸公差......................................................±0.2mm
有效孔径........................................................> 85%
光洁度............................................................60-40
面形...................................λ/8 per 25mm @632.8nm
平行度....................................................<3'(S1//S2)
倒角....................................................0.25mm x 45°
镀膜.................S1面镀介质高反膜,R>98%,R=(Rs+Rp)/2

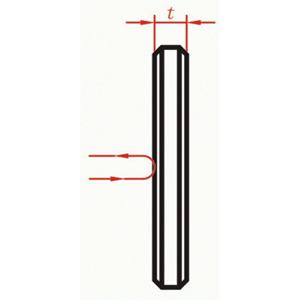

| P/N | Φ | t | AOI | λ |
|---|---|---|---|---|
| 50101 | 25.40 | 6.00 | 0° | 632.8nm |
| 50102 | 25.40 | 6.00 | 45° | 632.8nm |
| 50103 | 25.40 | 6.00 | 0° | 1064nm |
| 50104 | 25.40 | 6.00 | 45° | 1064nm |
●尺寸单位:毫米
●其他规格和镀膜要求请联系EastOptics销售获得。
